scalamobil – climb stairs safely and with ease

Mobile stair climbing device for wheelchairs

scalamobil – the mobile stair climbing device for your wheelchair

Every single step is an obstacle if you are no longer able to independently climb stairs due to illness or disability – be it at home, at the doctor’s office, in public buildings or when visiting friends and relatives. The new scalamobil makes difficult routes accessible again: It doesn't matter whether stairs are steep, narrow or windy, whether they are made from wood, stone or carpeted: scalamobil easily and smoothly climbs all stairs. And it is simply and safely operated with little effort. scalamobil is suited to most common models of wheelchair. A special bracket simply has to be fitted on the wheelchair and scalamobil is fixed to this in just a few steps. The benefit: The wheelchair driver does have to move in and out of the seat.



”Finally, I can get out of the house again and visit my grandchild.”

Gisela Sch. from Dortmund


Intelligent, reliable and incredibly easy to use

The scalamobil has patented safety sensors and if necessary can be individually programmed to the actual conditions of your stairs. If desired, the sensors help the user and permit an even safer and more importantly very gentle process. This is particularly advantageous and not just for wheelchair drivers with back problems.

Here’s how it works: scalamobil in simple terms

Product configuration

Discover all the product details

Go to product configuration

What is the difference between a stair climber and a stair lift?

When the stairs at home become a problem, you often face the dilemma of whether to have a permanent stair lift fitted or to buy a mobile stair climber. Here we explain the difference between these two products and help you reach the right decision.

Space-saving – simply take it with you no matter where you go.

scalamobil can be used anywhere. In a flash, your stair climber can be dismantled into compact individual parts and will even fit in a small trunk.

Quality from the market leader: Our drive components are developed and manufactured completely in Albstadt. 80 % of the primary materials also come from Germany.

Alber Service. We invest in long-term customer satisfaction. Our Service Center is characterized by rapid response and competent service partners.

Where can I try the scalamobil and what does it cost?

We would be happy to demonstrate the scalamobil to you free of charge and without any obligations at your home. Your local medical product retailer will also happily advise you on mobility aids from Alber. Alber products are eligible for reimbursement from health insurance companies (only for Germany). You generally only pay a contribution of €10 (only for Germany). Apply for our products with a prescription (only for Germany). We are happy to advise you!

Handlebar

  • ErgoBalance handles developed by specialists for a secure hold and which require minimum effort
  • With soft cushions at points where high pressure levels are experienced
  • Separate control elements to preselect the climbing direction and to initiate climbing
  • Ergonomic, fatigue-free main switch, ideal even for longer climbs
  • SoftTouch comfort cushion on the rear of the control unit to place on the thigh for additional support when climbing stairs backwards
  • The widths of the left and right handles can be adjusted separately to adapt to narrow stairwells or the user’s body shape
  • Continuously variable handlebar height adjustment
  • The handlebar can be easily fitted to and removed from the drive without cables

Display

  • Uncluttered display with clear indication of direction and warning signal when the battery charge is low
  • Sensor field for drive away lock
  • On/Off button with backlight

E-box with control elements

  • Interface for programming and setting the IQ feature
  • Switch for activating/deactivating single step mode
  • Continuously variable selection of climbing speed 6 –19 steps/min

Climbing unit with automatic safety brake

  • Patented climbing mechanism for universal use on virtually any stairs
  • Tires made from wear-resistant material, reliably gentle on the stair covering in the long term
  • Four automatic safety brakes with improved surmounting of obstacles reliably stop the scalamobil before the edge of each step
  • Housing with sturdy lightweight aluminium design
  • With practical carrying handle for simple loading
  • With bolts to hold the wheelchair

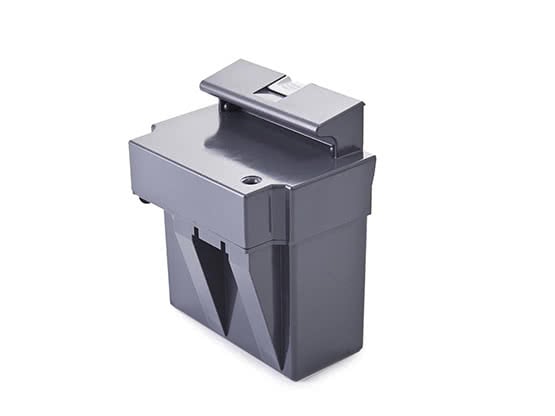

Battery pack

  • One charge can climb up to 300 steps (with weight of the person of around 70 kg)
  • Can be replaced very simply to extend the range
  • The battery can be charged separately from scalamobil

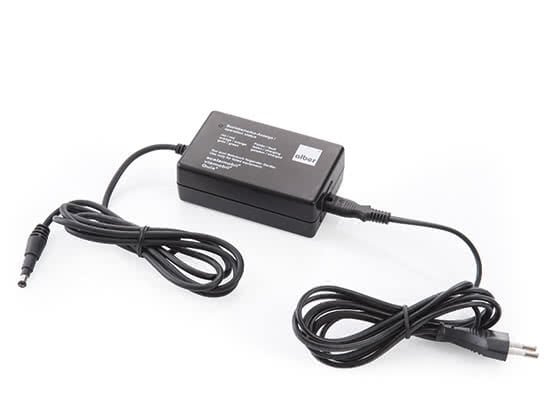

Automatic battery charger

  • Electronic automatic charge and switch off mechanism
  • Indicator for charge control
  • Automatic adaptation to mains voltage of 90 – 240 V (useful when traveling)
Technical data
scalamobil
Climbing speed
scalamobil

6-19 steps/min

Range
scalamobil

Up to 300 steps

Max. weight of the person
scalamobil

140 kg

Max. permitted total weight
scalamobil

180 kg
(scalamobil, wheelchair and wheelchair driver)

Battery pack
scalamobil

2 x 12 V; 3.4 Ah

Weight and dimensions of individual parts
S35
Climbing unit
S35

17.4 kg (without battery pack)

Battery pack
S35

2.7 kg

Handlebar
S35

4.9 kg

Weight (total)
S35

25 kg

Width (total)
S35

43-52 cm

Height (total)
S35

120-160 cm

scalamobil is recognised by health insurance companies and complies with the EC Directive 93/42/EEC concerning medical devices.

Certified in accordance with ISO 9001:2000 and ISO 13485:2003 for medical devices.

Bracket

  • To fasten the scalamobil to the wheelchair (please order separately if you do not yet have a bracket)
  • Please state type of wheelchair and seat width

Other accessories

  • Climbing height extension

    scalamobil S38 with climbing height extension



    • For stairs of up to 25 cm
    • If combined with scalastuhl X3, a modified frame is needed
    • Also available with integrated seat unit as scalamobil_fly or with scalaport X7 universal adapter
  • scalastuhl X3

    Given its small dimensions, the scalastuhl X3 is a useful alternative to a normal wheelchair, especially in small apartments or narrow stairwells. The bracket for the scalamobil is already integrated in the scalastuhl X3. The scalastuhl X3 can be removed in only a few steps and can be used indoors as a push-chair. The scalastuhl X3 is also designed to transport special seat shells, which can be fitted on the scalastuhl X3 by your medical product retailer using adapters. The soft wheels with brakes make the product easy to push and stable when moving into/out of the seat. The cushions can be taken off and washed. A foldable version is also available. This can be folded together in one step and thereby stowed in very little space. A headrest for comfortable seating, push handles and a belt system round off the accessories for the scalastuhl X3. Weight and dimensions:
    Weight: 12.8 kg
    Width: 51 cm
    Height: 95 cm
    Depth, folded: 34 cm
    Max. weight of the person: 140 kg

  • scalaport X7

    When combined with scalamobil, the scalaport X7 allows many different wheelchairs to be transported up and down stairs without a bracket having to be fitted on every individual wheelchair and without the large wheelchair wheels having to be taken off. scalaport X7 is intended especially for nursing homes, transport providers and public buildings such as schools or museums. It also allows wheelchairs to be transported privately if the frame geometry of the wheelchair does not allow a standard bracket to be fitted for the scalamobil. The entire wheelchair is secured to the scalaport X7 to be transported up or down stairs. The new folding mechanism permits both stowing in small spaces and simple system transport. You will find more information in our scalaport info brochure.

  • Combination with comfort wheelchairs

    Selected comfort wheelchairs can also be combined with the scalamobil using a special bracket so that people requiring support can be easily transported up or down stairs.

  • Headrest

    • Ensures a secure hold and stability for the neck and head section when going up and down stairs
    • With clip function for scalamobil and scalacombi
    • With soft cushions
    • Height, depth and inclination can be adjusted
  • Safety lap belt

    • With tried and tested safety quick-locking device
    • 90 cm long
    • Simple to mount on the wheelchair
  • Combination with narrow wheelchairs

    • Can be mounted on narrow wheelchairs (< 40 cm) with a seat width of 28 cm or more, e.g. for children, on request
    • This requires a special bracket
    • Max. weight of the person 60 kg
    • Alternatively, the scalaport X7 can also be used to transport narrow wheelchairs as of a seat width of 26 cm
  • Tilt bar

    • Makes it easier to tilt the wheelchair when overcoming obstacles (not suited to scalastuhl X3)
    • Is fastened to the wheelchair bracket for the scalamobil (has to be removed to climb stairs)
    • Can only be used once the scalamobil has been taken off (cannot be used in combination).
  • Wheel transport bracket

    • To transport the wheelchair wheels along with the scalamobil
    • Wheels do not have to be transported separately
    • Bracket suited to all common models of wheelchair
  • Anti-tippers

    • Can be removed using quick-release device
    • Height and length can be adjusted
    • With automatic swiveling function for passing over curbs and thresholds
    • Fastened to the wheelchair bracket for the scalamobil and has to be removed to climb stairs
  • Stub axle

    Conversion from screw to stub axle:
    Because the large wheelchair wheels have to be removed to climb stairs, a stub axle system is needed.



    • Conversion comprises hubs, spokes, stub axles, adapter sleeves, mounting
    • Available for normal standard hubs and drum brakes
  • Automotive battery charger

    • For charging the battery pack in the vehicle during travel
    • Electronic automatic charge and switch-off mechanism (function depends on the vehicle used)
    • Indicator for charge control
    • Voltage range 12 V - 32 V
